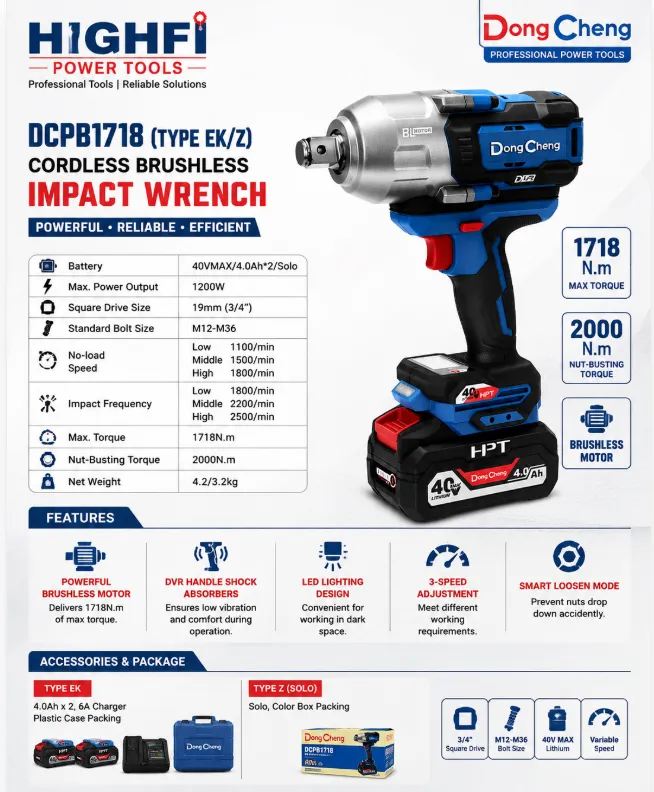

DongCheng DCPB1718 (TYPE EK/Z) Cordless Brushless Impact Wrench
Powerful Cordless Performance for Heavy-Duty Applications
The DongCheng DCPB1718 (TYPE EK/Z) Cordless Brushless Impact Wrench is designed for demanding fastening and loosening applications where high torque and reliable performance are essential.
With a powerful brushless motor delivering up to 1, 718 N·m of maximum torque and 2, 000 N·m of nut-busting torque, the DCPB1718 is built to handle demanding professional applications. Its cordless design provides greater freedom of movement, while the three-speed settings allow users to adjust performance according to the job.
Highfi Power Tools offers the DongCheng DCPB1718 for professional users looking for a high-performance cordless impact wrench.
View the DongCheng DCPB1718 Product Page
DongCheng DCPB1718 Specifications
Specification Details
Brand DongCheng
Model DCPB1718 (TYPE EK/Z)
Product Type Cordless Brushless Impact Wrench
Battery 40V MAX / 4.0Ah × 2 / Solo
Max. Power Output 1200 W
Square Drive Size 19 mm (3/4')
Standard Bolt Size M12–M36
Maximum Torque 1718 N·m
Nut-Busting Torque 2000 N·m
No-Load Speed – Low 1100/min
No-Load Speed – Middle 1500/min
No-Load Speed – High 1800/min
Impact Frequency – Low 1800/min
Impact Frequency – Middle 2200/min
Impact Frequency – High 2500/min
Net Weight 4.2 / 3.2 kg
Key Features of DongCheng DCPB1718
Powerful Brushless Motor
The high-performance brushless motor produces up to 1718 N·m of maximum torque, providing strong output for demanding fastening and loosening applications.
DVR Handle with Shock Absorption
The new DVR handle shock-absorbing design helps reduce vibration during operation and provides a more comfortable grip when using the tool for extended periods.
Built-In LED Light
The integrated LED lighting helps illuminate the work area, making the impact wrench more convenient to use in darker or restricted spaces.
Three-Speed Adjustment
The three-speed control allows users to select the appropriate operating speed for different jobs.
Low: 1100/min
Middle: 1500/min
High: 1800/min
Smart Loosen Mode
The smart loosen mode is designed to help prevent loosened nuts from dropping accidentally, making fastening and removal work more convenient.
Where Can the DCPB1718 Be Used?
The DongCheng DCPB1718 is suitable for professional applications requiring high torque and a 19 mm (3/4') square drive. Depending on the specific job, it can be used for machinery maintenance, mechanical assembly, heavy equipment servicing, construction-related fastening, automotive work, and other demanding applications.
Always select the correct socket, fastener specification, and operating setting for the application.
Accessories & Package Options
Type EK
The Type EK package includes:
4.0Ah battery × 2
6A charger
Plastic case packing
Type Z
The Type Z configuration is supplied as a solo tool. This option can be suitable for users who already have the required compatible battery and charging equipment.
Package contents should be confirmed with Highfi Power Tools before purchase.
Frequently Asked Questions
What is the DongCheng DCPB1718?
The DongCheng DCPB1718 is a cordless brushless impact wrench designed for high-torque fastening and loosening applications.
What is the maximum torque of the DCPB1718?
The maximum torque is 1718 N·m, while the specified nut-busting torque is 2000 N·m.
What is the drive size?
The DCPB1718 has a 19 mm (3/4') square drive.
What bolt sizes can the DCPB1718 handle?
The specified standard bolt range is M12 to M36. Actual performance can vary depending on the fastener, application, material, and operating conditions.
Is the DCPB1718 brushless?
Yes. The DCPB1718 uses a brushless motor designed to deliver high torque and reliable performance.
What battery does the DCPB1718 use?
The tool is specified for a 40V MAX battery platform. The Type EK configuration includes two 4.0Ah battery packs, while the Type Z is the solo configuration.
How many speed settings does the DCPB1718 have?
It has three speed settings:
Low – 1100/min
Middle – 1500/min
High – 1800/min
Does the DCPB1718 have an LED light?
Yes. It features an integrated LED work light to improve visibility in darker work areas.
What is the DVR handle?
The DVR handle incorporates a shock-absorbing design intended to reduce vibration and improve user comfort during operation.
What is Smart Loosen Mode?
Smart loosen mode is designed to help prevent nuts from dropping after they have been loosened, making removal work more convenient.
What is included in the Type EK package?
The Type EK package includes two 4.0Ah batteries, a 6A charger, and plastic case packing, according to the supplied specifications.
Is the Type Z supplied with a battery?
The Type Z is the solo configuration. Customers should confirm the exact package contents with Highfi Power Tools before ordering.
Where can I buy the DongCheng DCPB1718?
You can contact Highfi Power Tools for product availability, package options, pricing, and application assistance.
Buy DongCheng DCPB1718 from Highfi Power Tools
If you need a high-torque cordless impact wrench for professional applications, the DongCheng DCPB1718 (TYPE EK/Z) combines a powerful brushless motor, 1718 N·m maximum torque, 2000 N·m nut-busting torque, three-speed control, LED lighting, and a vibration-reducing handle.
Highfi Power Tools can assist you with product selection, availability, and the appropriate Type EK or Type Z configuration for your requirements.
